OZBR PRO

Rapid Connecting Links Block Connector Rapid OZBR PRO
in accordance with FASING Technical Specifications and DIN 22258-3

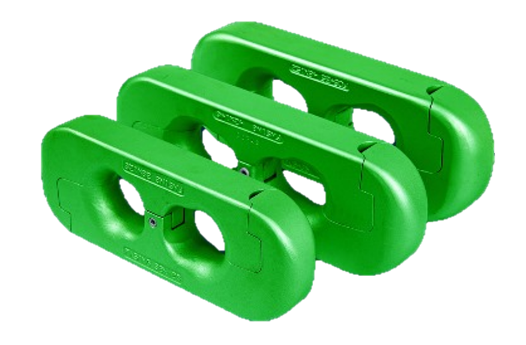

Connector OZBR PRO

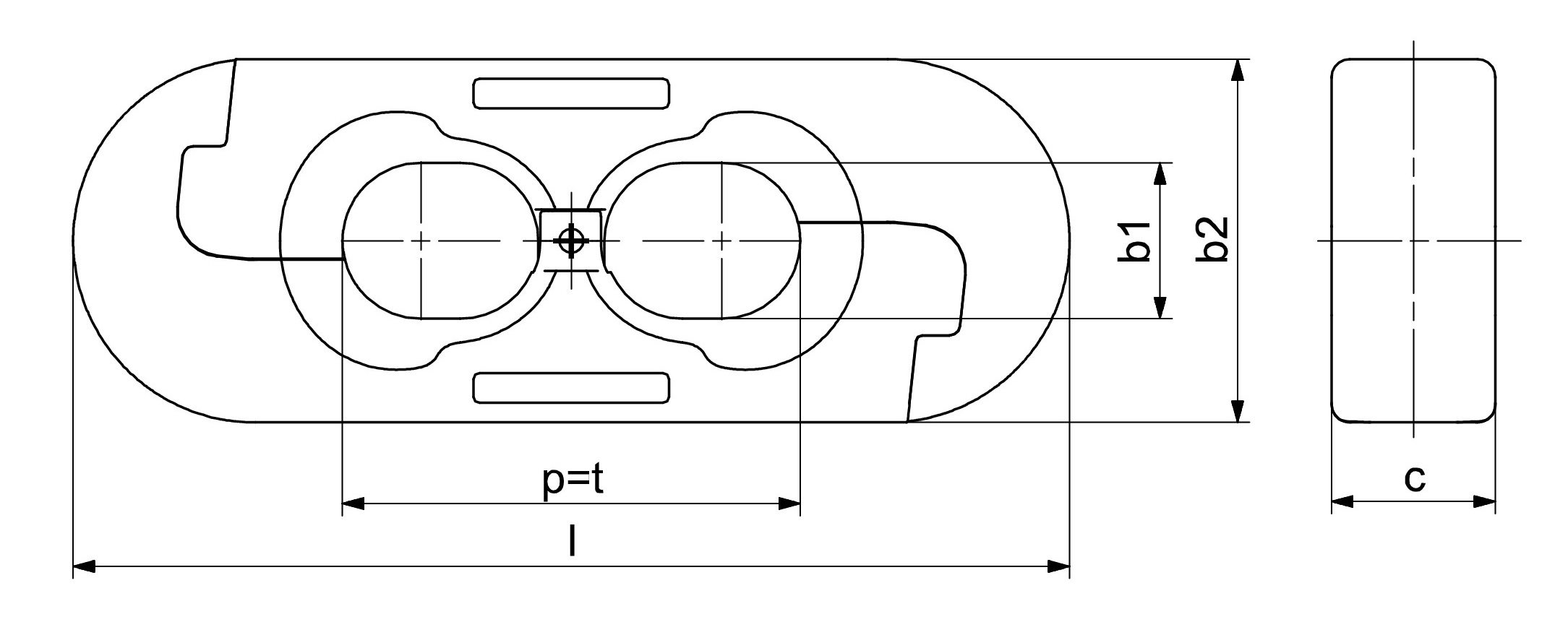

Link size d×p-b2 [mm]	p=t [mm]	l max [mm]	c max [mm]	b1 min [mm]	b2 max [mm]	Breaking load min [kN]	Link weight ∼[kg]
38×126-98	126	284	36	37	98	1 610	5.8
38×126-101	126	275	40	41	101	1 910	6.3
38×137-101	137	307	40	41	101	1 910	7.2
SP 38×126-88	126	308	54	40	88	2 010	7.1
42×146-109	146	329	45	45	109	2 510	9.0
SP 42×128-99	128	315	60	44	99	2 510	10.2
48×144-115	144	336	56	52	115	2 910	11.7
48×152-121	152	336	56	52	121	2 910	12.3
SP 50×146-115	146	351	65	52	115	3 400	14.5
52×170-125	170	366	61	55	125	3 400	14.7
56×187-131	187	402	66	62	131	4 010	18.0
SP 56×168-130	168	390	75	61	130	3 940	20.5
60×181-135	181	398	69	65	135	4 520	19.4

Fatigue resistance acc. to DIN 22258-3 standard.
As a standard, connectors OZBR PRO are painted with a special paint of FASING green colour RAL 6018, zinc-plated Zn-M or zinc-aluminum-plated Zn-Al-M – surface.
